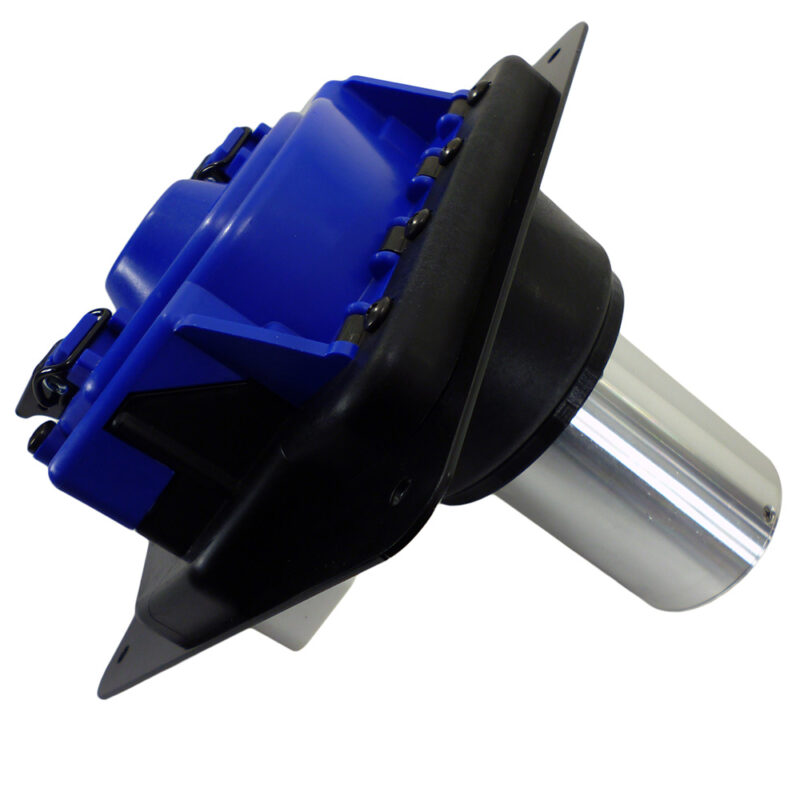

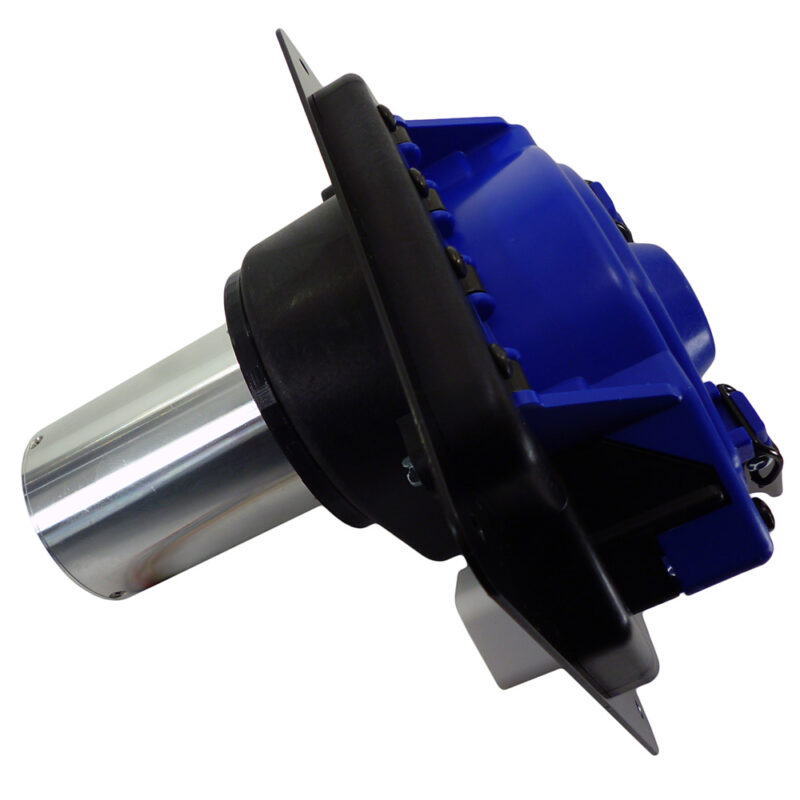

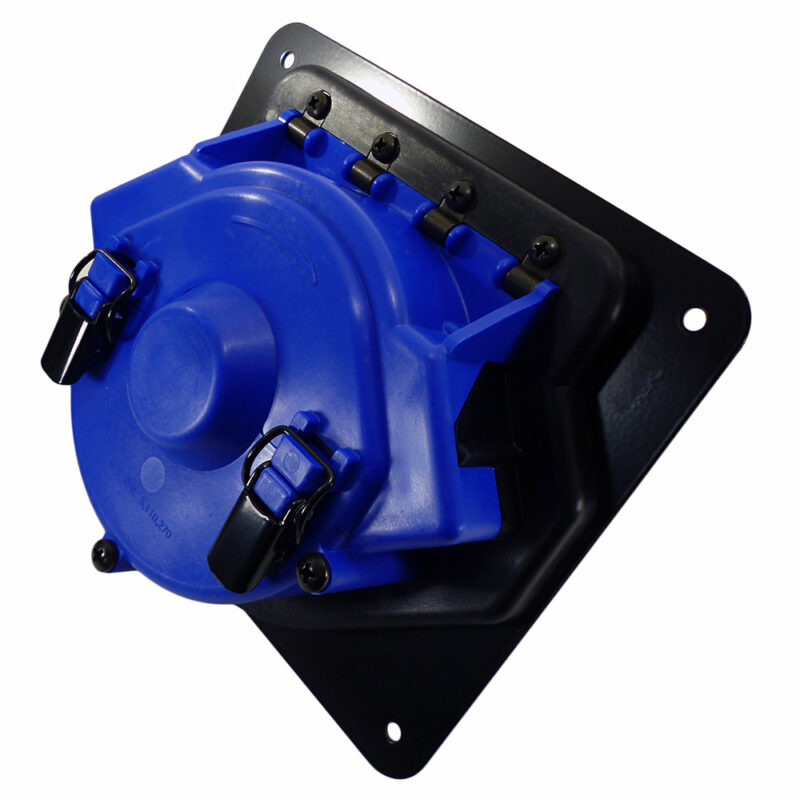

PMBK600 Brushless Peristaltic Pump

$379.00$629.00

Brushless DC motor with hall sensors

Full function motor controller is optional

Front and back rotor ball bearings

Self-priming, panel mount, 4 roller design

Choose (red) 5:1 gear ratio for maximum flow rate

Choose (blue) 12.5:1 gear ratio for lower flow rate

Excellent dry running characteristics

Can pump slurries with high particulate content

Designed for 1/8 inch wall tubing

Fluid only contacts the inside of the tubing

Made in USA, heavy duty construction

Pumps extremely hot or cold fluids

Compatible with many chemicals and aggressive fluids

Clear
Description

PMBK600 Peristaltic Pump

  • 24 VDC – 2.5 amps – 60 watt
  • PMBK675 maximum flow rate: 7.0 liters per minute
  • PMBK680 maximum flow rate: 3.2 liters per minute
  • Maximum psi for firm tubing: 30
  • Maximum psi for soft tubing: 10
  • Maximum suction lift: 20 feet
  • Dimensions: 7.250 x 6.400 x 6.875 inches, weight: 4.0 lbs
  • Tubing: 0.375 or 0.250 inch ID with 0.125 inch wall thickness
Additional information
Controller Type

None, Raw Circuit, Aluminum Enclosure
